TIGER Z400PRO  Arabic IPTV With 1200+ Channels  Free 1 Year Satellite TV Receiver Europe channels over 700 channels

TIGER Z400PRO Arabic IPTV With 1200+ Channels Free 1 Year Satellite TV Receiver Europe channels over 700 channels

  • €147,34
  • Save €78,84


TIGER Z400PRO Arabic IPTV With 1200+ Channels Red IPTV Platinum Free 1 Year Arabic IPTV Europe satellite tv receiver IPTV BOX

arabic IPTV BOX (1)arabic IPTV BOX (2)arabic IPTV BOX (5)arabic IPTV BOX (3)arabic IPTV BOX (4)
Z400pro Specification
1. Tuner & Demodulator
Input Frequency Range 950 MHz-2150MHz
RF Input Signal Level -64 dBM -25dBm
RF Impedance 75Ω
RF Bandwith 55 MHz/8 MHz (Under 5 Msps)
LNB Power 13/18 DC, +5/-5%, 0.5A max
LNB Tone Switch 22 KHz+/- 2KHz,0.64V p-p +/0.15V
DisEqC Control V1.0, V1.2, Tone burst A/B
Demodulation QPSK
Sybol Rate 1~45 Msps/SCPC ,MCPC

2. MPEG
Transport Stream MPEG-4, H.264, MPEG-2 ISO/IED
13818 Transport Stream Specifications
Input Rate Max. 120Mbit/s
Video MPEG-1/2 Audio Layer1 or Layer1 or Layer2, MPEG2 MPEG4
AAC and MPEG4 AAC-HE(AAC+)),Dolby Digital(AC-3),MPs,WMA
Aspect Ratio 4:3, 16:9, Ato Detect
Video Resolution 576i, 576p, 720p, 1080i
Audio Mode Stereo, Dual Channel, Joint Stereo, Mono, AC3
Audio Sampling Frequency 32,44.1/48KHz

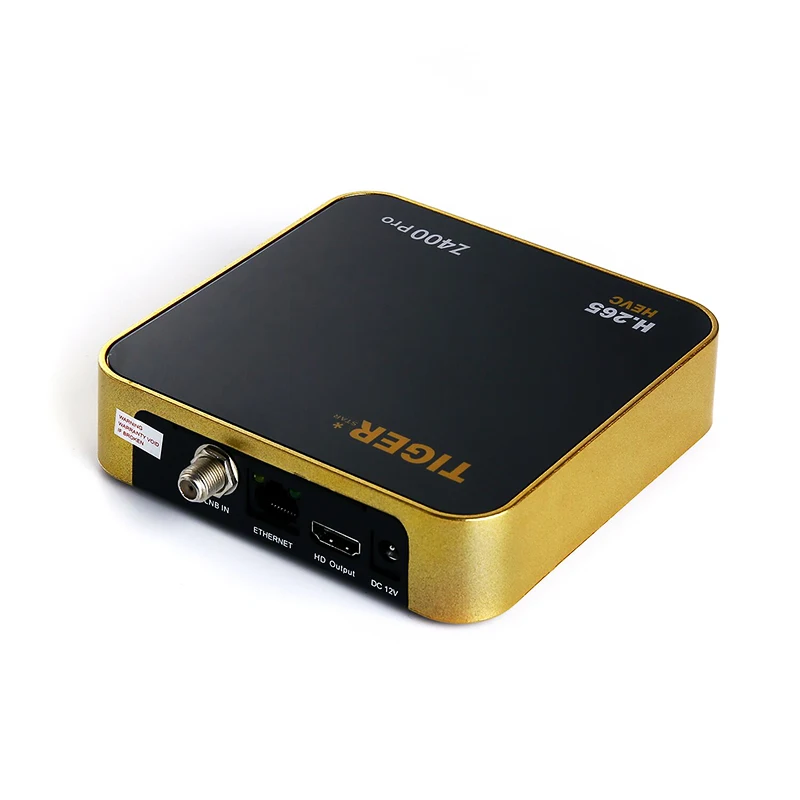

3. Connector
LNB IF input F type, IEC 169-24 Female
HDMI HD Video/  Audio, Ver 1.2, TypeA
RCA AUDIO L/R, CVBS, 0/12V

4. Power Supply
Input Voltage 100-240 v ~ 50/60 Hz 0.6A
Power Consumption Max 25W
Standby Power Max 1W
Weight Appr. 100GR
Operation Temperature 0°C-40°C
Storage Temperature -40°C-60°C

5. Main system
CPU 667 MHz
Flash 8 Mbyte (64 Mbit)
S-Dram 2G (128 Mbit)
USB USB 2.0

Model Number: Z400PRO
Package: Yes
Brand Name: tiger star
Type: Digital
FTA(Free To Air): Yes
With USB Wifi: Yes
High Definition: Yes
